Hougen Castors and Wheels

Plate Fix Swivel Braked Castor - Polyurethane Wheel

Product description

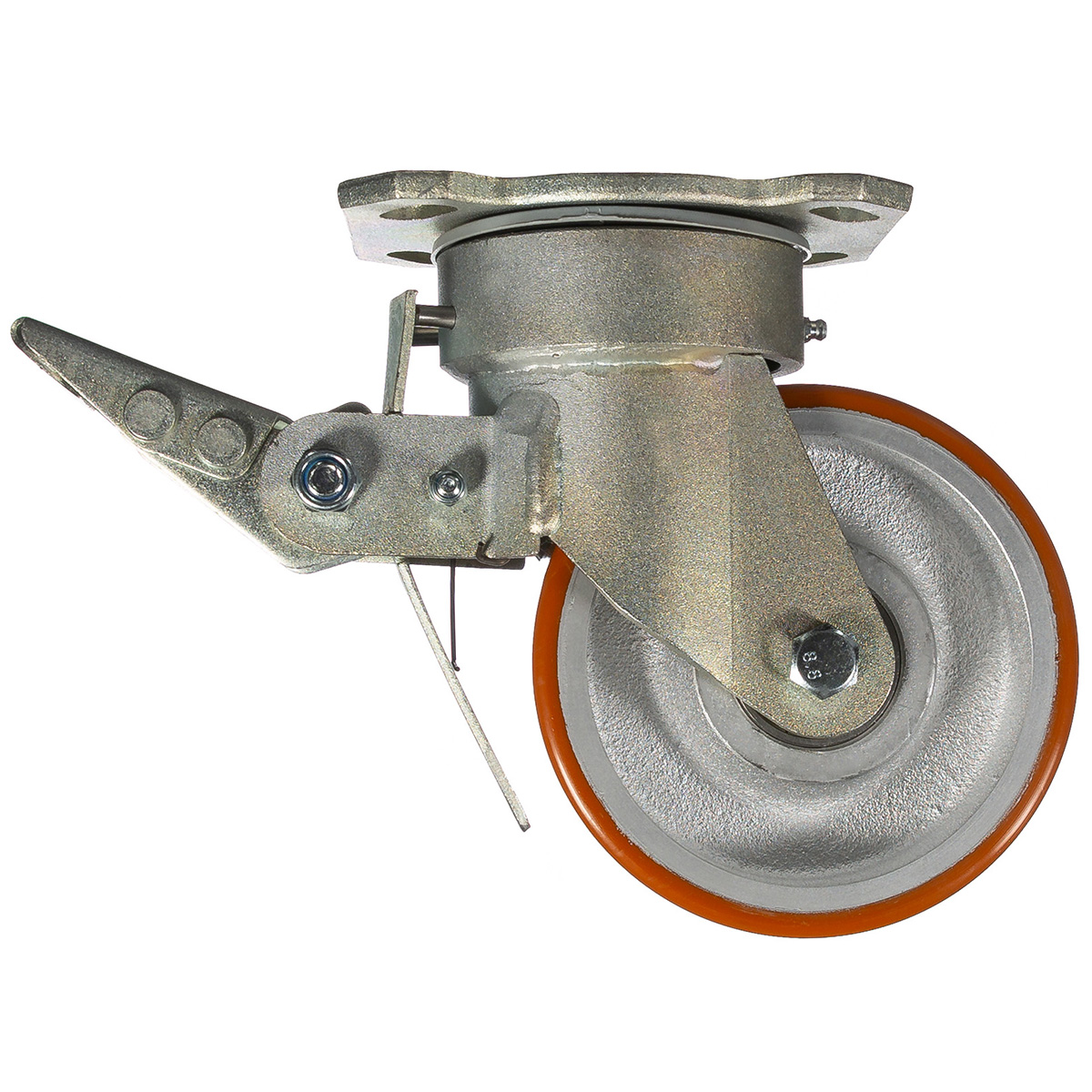

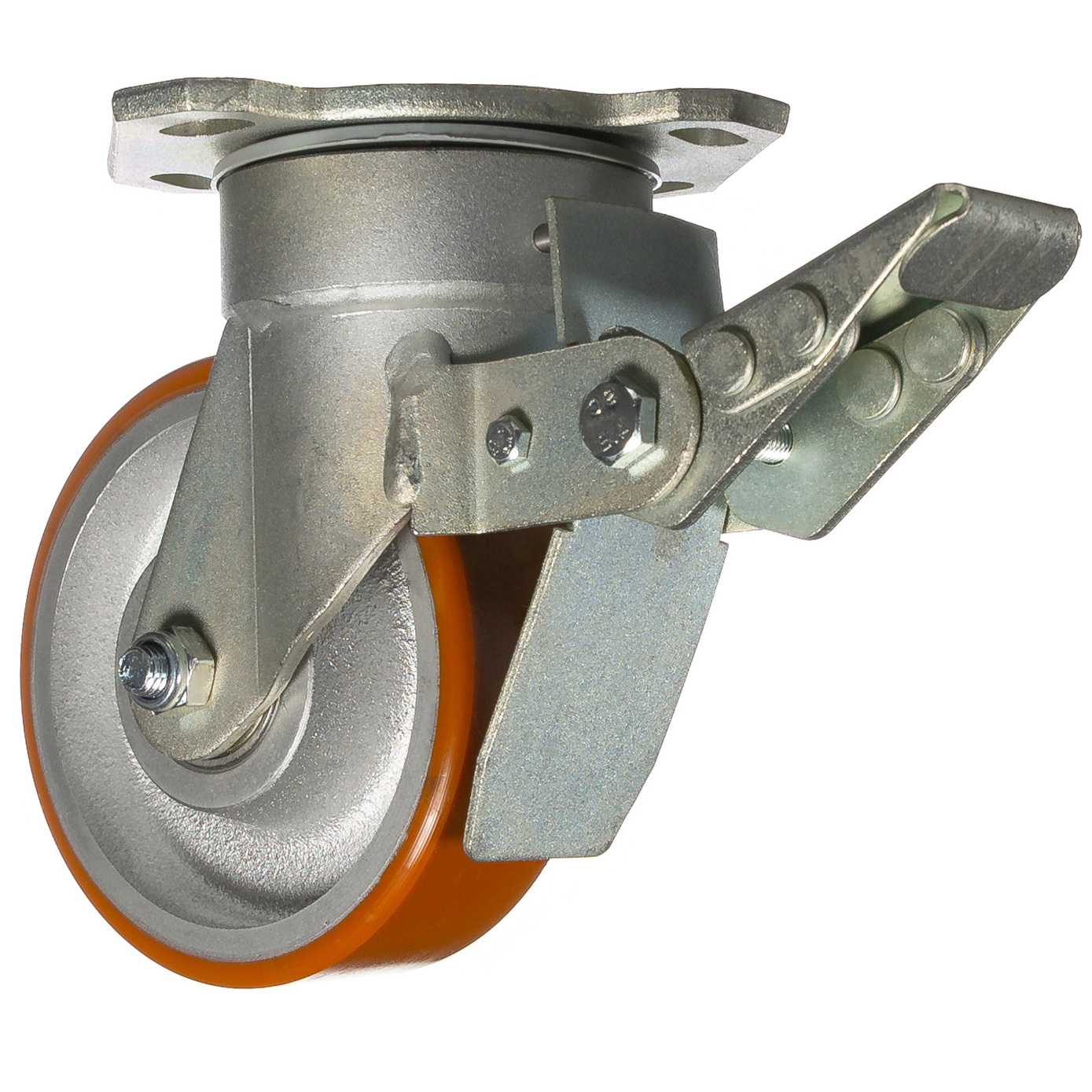

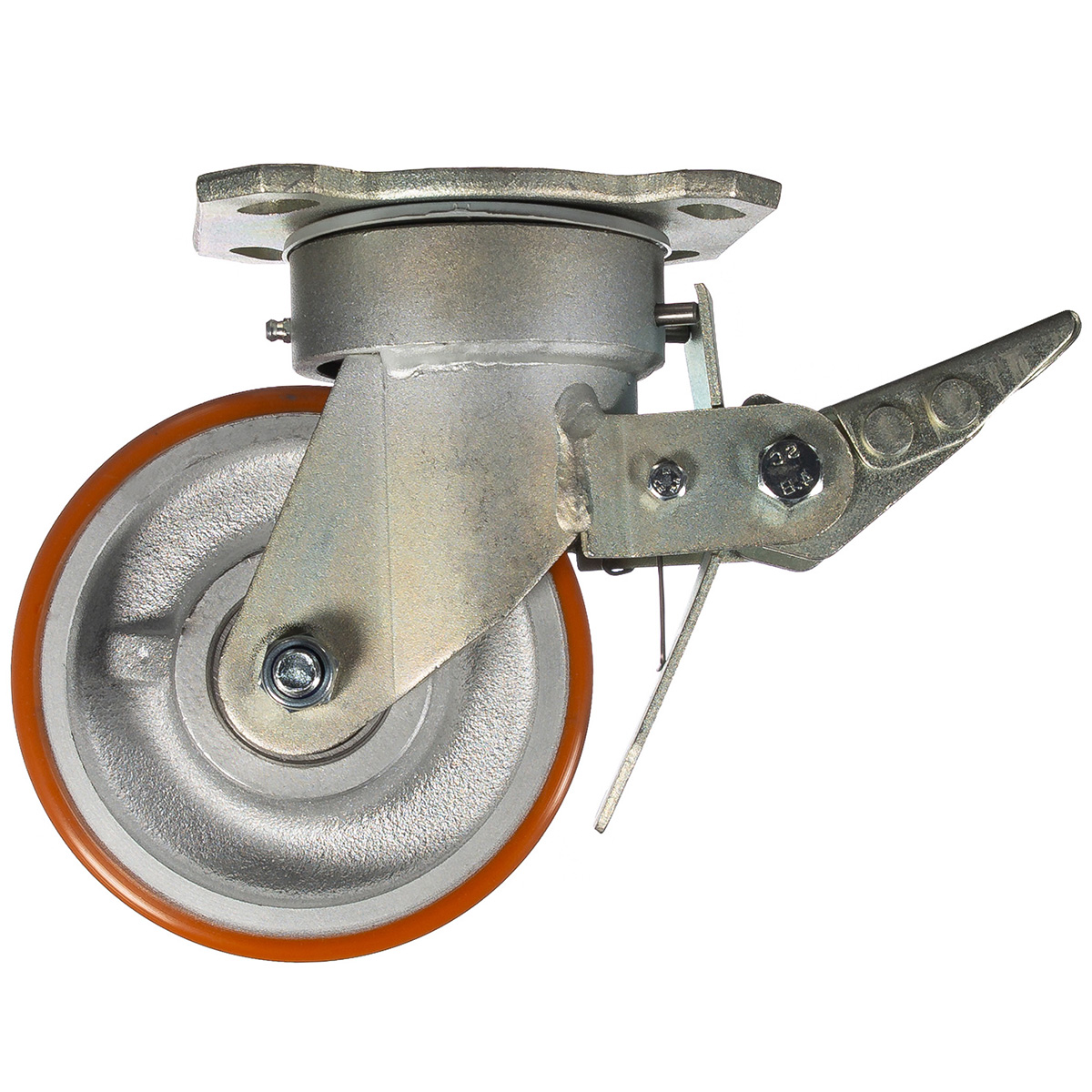

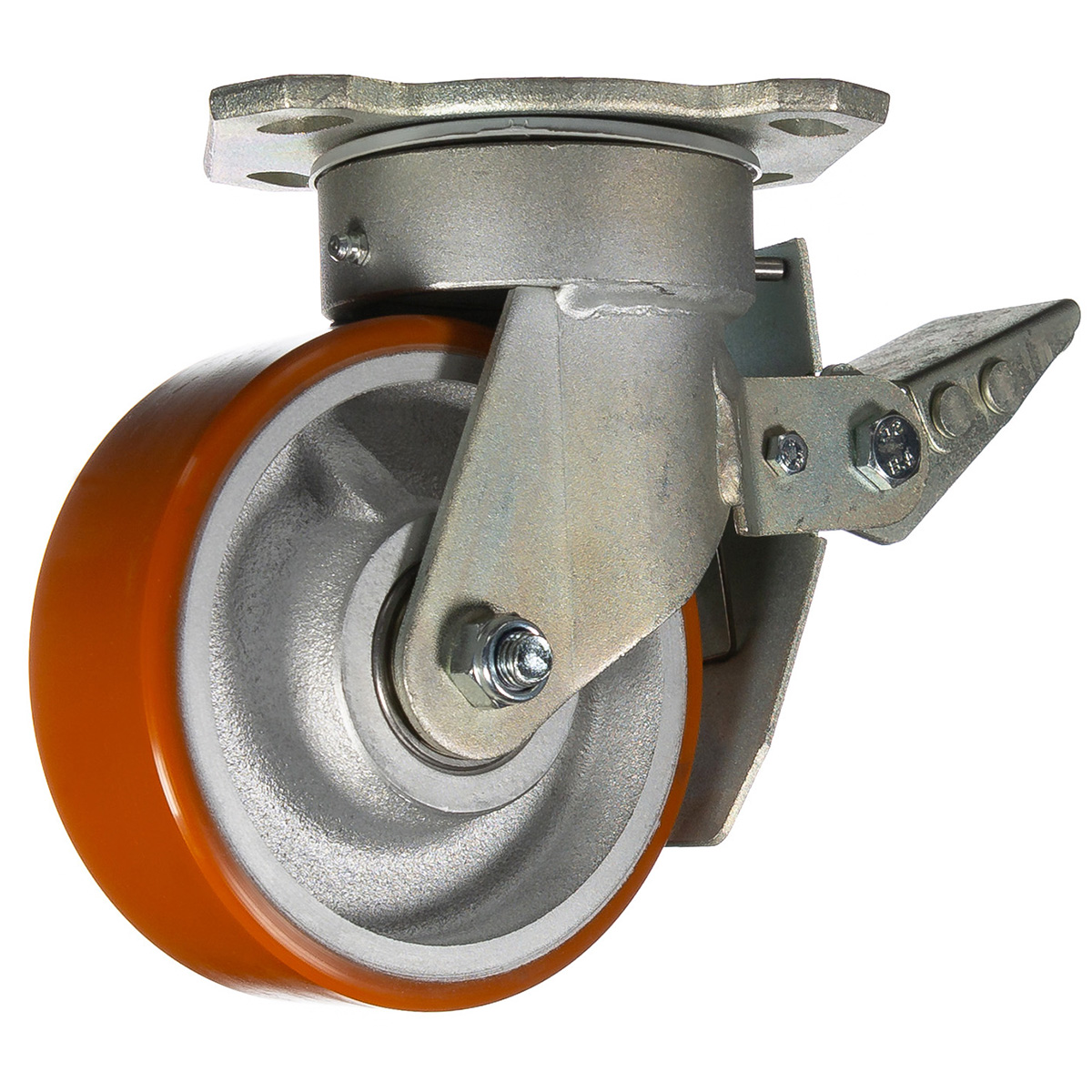

Heavy duty fabricated plate fix swivel braked castor fitted with a Polyurethane tread wheel.

Fabricated steel swivel castor with a top plate fixing fitted with polyurethane on cast iron centred wheel with ball journal bearings and total stop brake. Wheel diameter 150mm, tread width 50mm, overall height 202mm, top plate 150mm x 110mm, hole centres 105mm x 80mm or 120mm x 60mm.
Load capacity 800kg.

Running surface

Suitable for smooth concrete floors free of thresholds and obstructions larger than 3.5mm.

Hougen Product Code
HSCPY150P-TSB

Price
£205.95+vat

Shipping
Price upon enquiry.

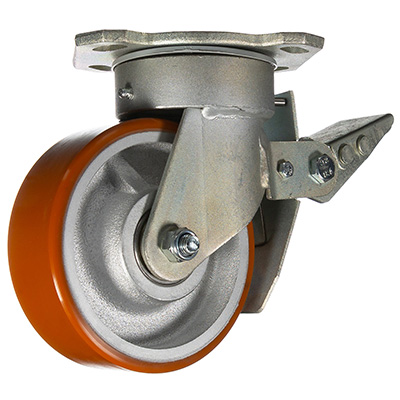

Plate-fix swivel braked castor with Polyurethane wheel 800kg capacity

Specifications
Diameter (mm) 150
Castor Type Swivel
Fixing Option Plate
Height (mm) 202
Wheel Material Polyurethane on Cast Iron
Colour / Shore Hardness Brown Polyurethane on Cast Iron Rim / TBC
Temperature Resistance TBC
Bearing Type Ball
Load Capacity (kg) 800
Tread width (mm) 50
Swivel Radius (mm) 157

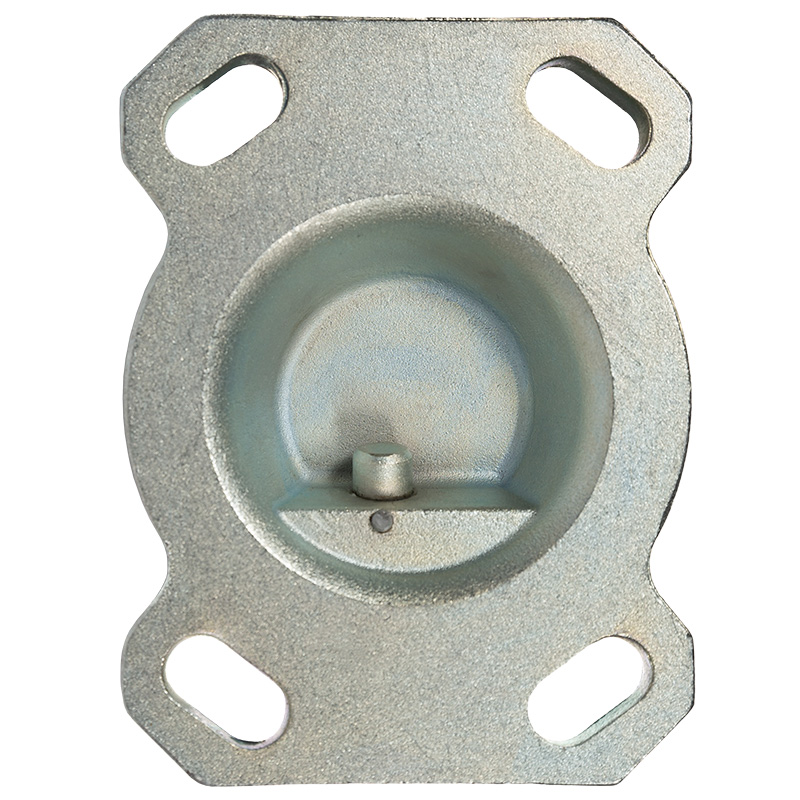

Plate Size (mm) 150 x 110
Hole Centres (mm) 60/80 x 120/105
Top Plate Thickness (mm) 7
Fork Thickness (mm) 5
To Suit Fixing Bolt (mm) 12

Place an Order

To order, simply email with your requirement, including the Hougen product(s) code, title and quantity.
Please supply billing/shipping details and we will send you a quote to include shipping.
Once invoiced, following payment, your order will be despatched within 3 days.

We will of course call you if you would like to discuss any aspect of the product or schedule.
