Hougen Castors and Wheels

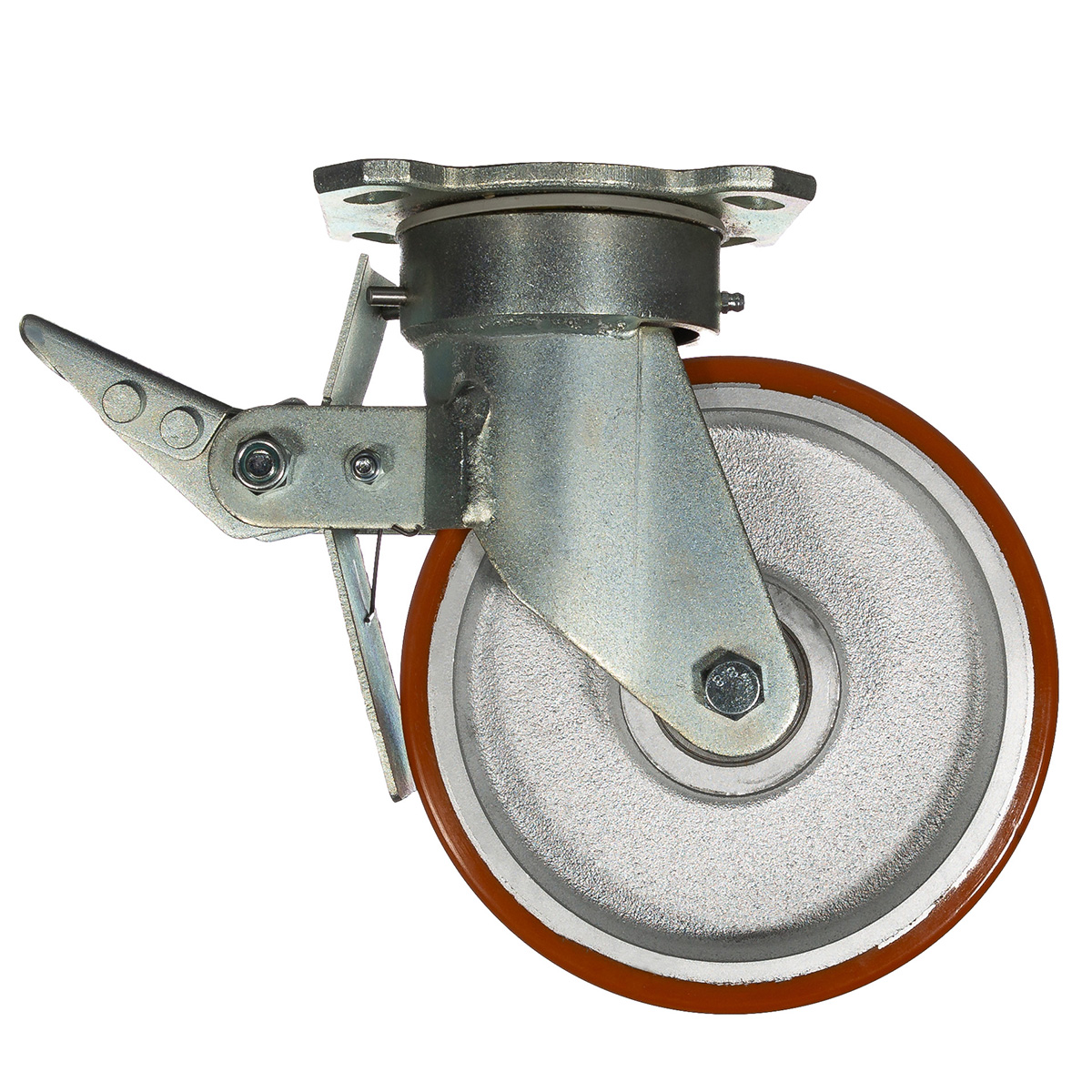

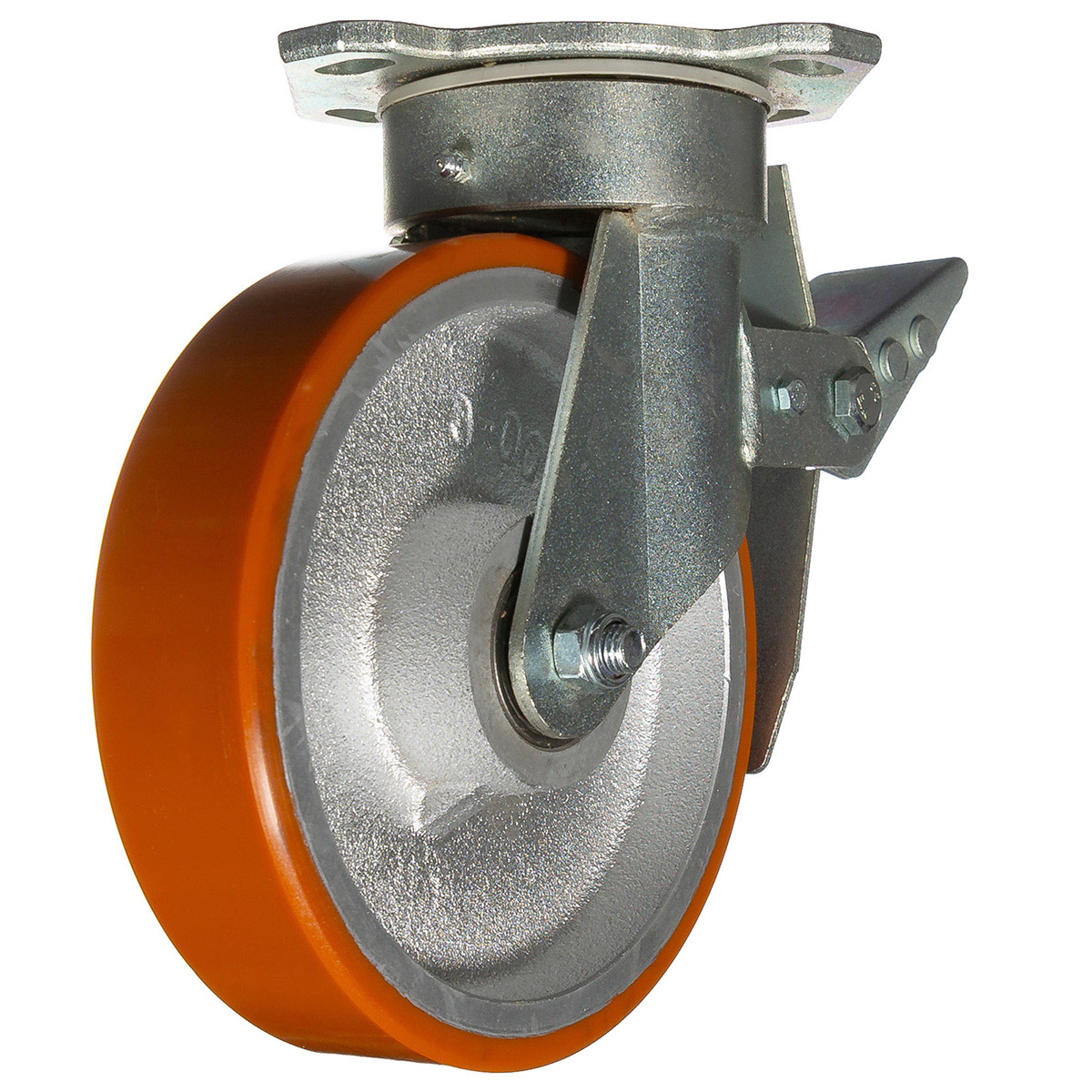

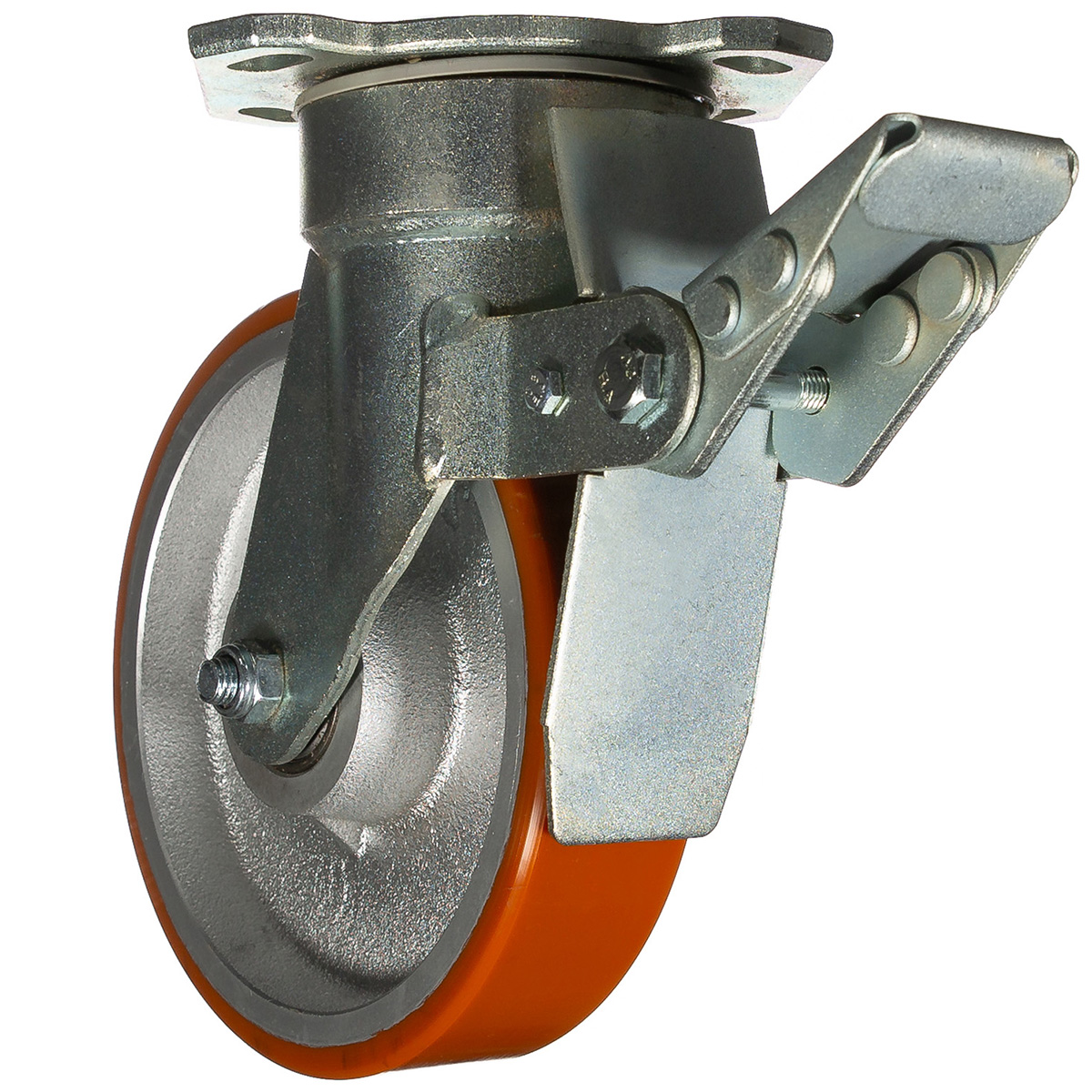

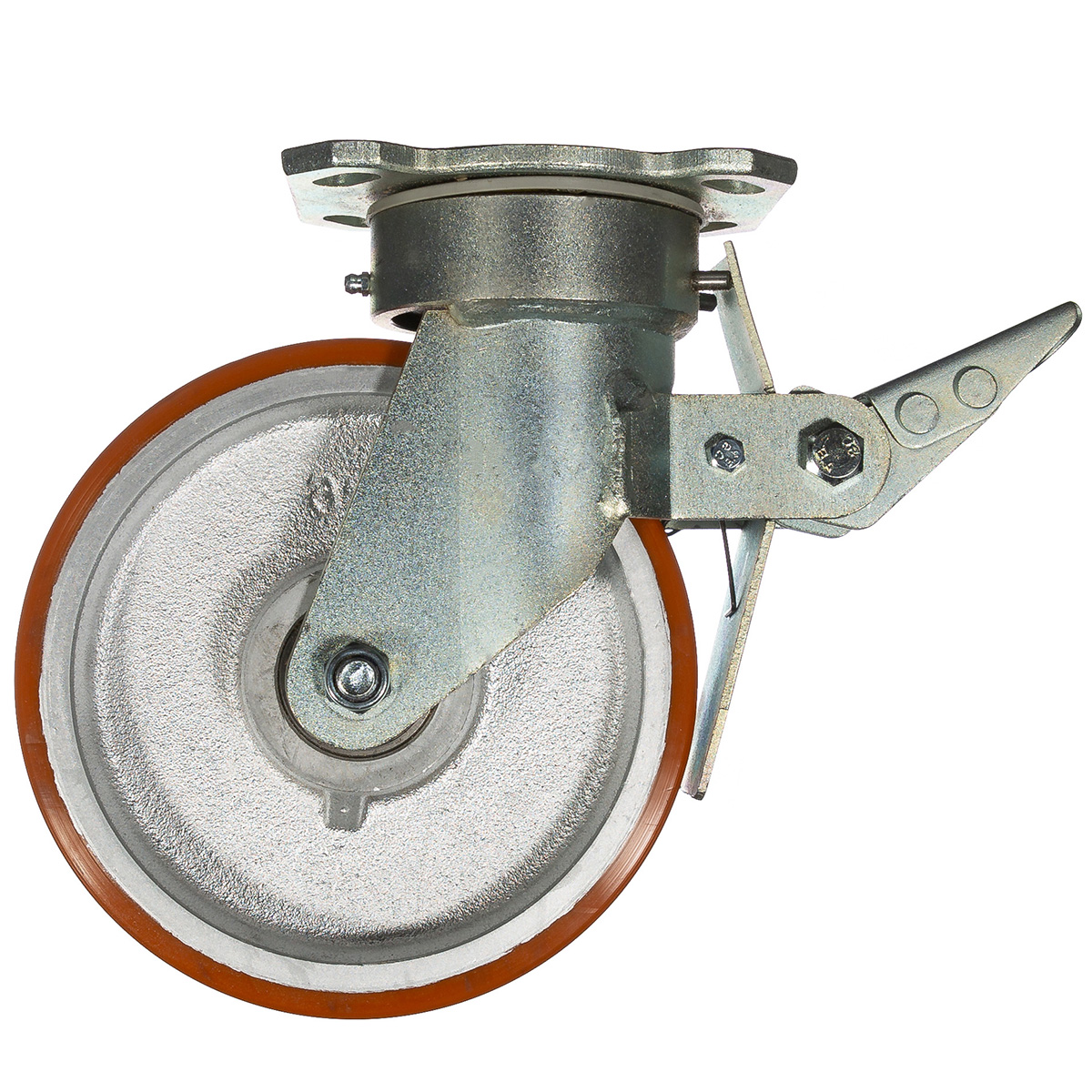

Plate Fix Swivel Braked Castor - Polyurethane Wheel

Product description

Heavy duty fabricated plate fix swivel braked castor fitted with a Polyurethane tread wheel.

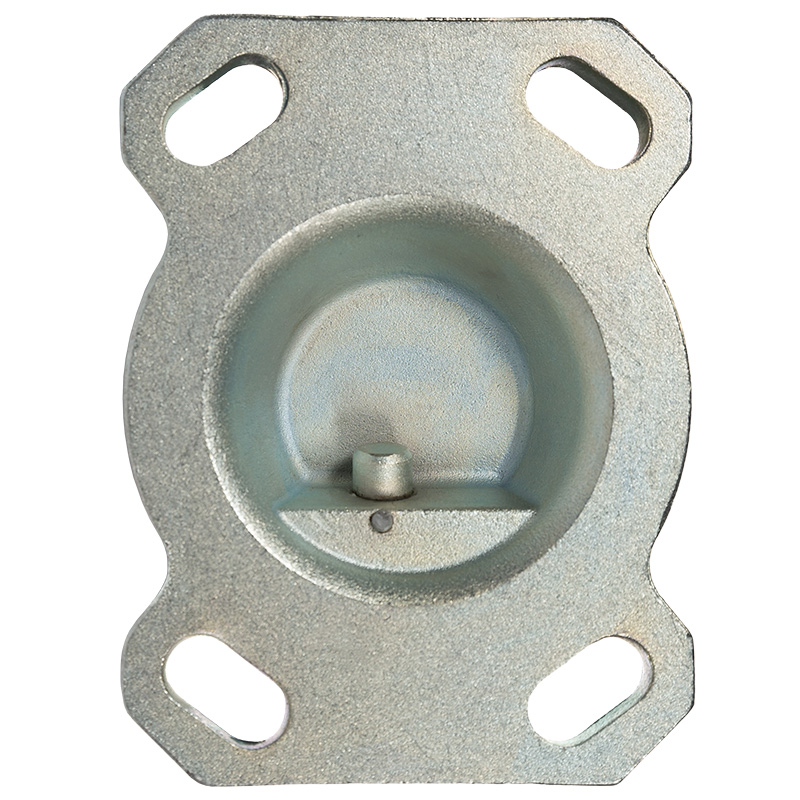

Fabricated steel swivel castor with a top plate fixing fitted with polyurethane on cast iron centred wheel with ball journal bearings and total stop brake. Wheel diameter 200mm, tread width 50mm, overall height 252mm, top plate 150mm x 110mm, hole centres 105mm x 80mm or 120mm x 60mm.
Load capacity 1000kg.

Running surface

Suitable for smooth concrete floors free of thresholds and obstructions larger than 3.5mm.

Hougen Product Code
HSCPY200P-TSB

Price
£227.53+vat

Shipping
Price upon enquiry.

Plate Fix Swivel Braked Castor - Polyurethane Wheel 1000kg capacity

Specifications
Diameter (mm) 200
Castor Type Swivel
Fixing Option Plate
Height (mm) 252
Wheel Material Polyurethane on Cast Iron
Colour / Shore Hardness Brown Polyurethane on Cast Iron Rim / 92 shore A
Temperature Resistance -30°C to 80°C
Bearing Type Ball
Load Capacity (kg) 1000
Tread width (mm) 50
Swivel Radius (mm) 127
Plate Size (mm) 150 x 110
Hole Centres (mm) 60/80 x 120/105
Top Plate Thickness (mm) 7.5
Fork Thickness (mm) 4.5
To Suit Fixing Bolt (mm) 12

Place an Order

To order, simply email with your requirement, including the Hougen product(s) code, title and quantity.
Please supply billing/shipping details and we will send you a quote to include shipping.
Once invoiced, following payment, your order will be despatched within 3 days.

We will of course call you if you would like to discuss any aspect of the product or schedule.
